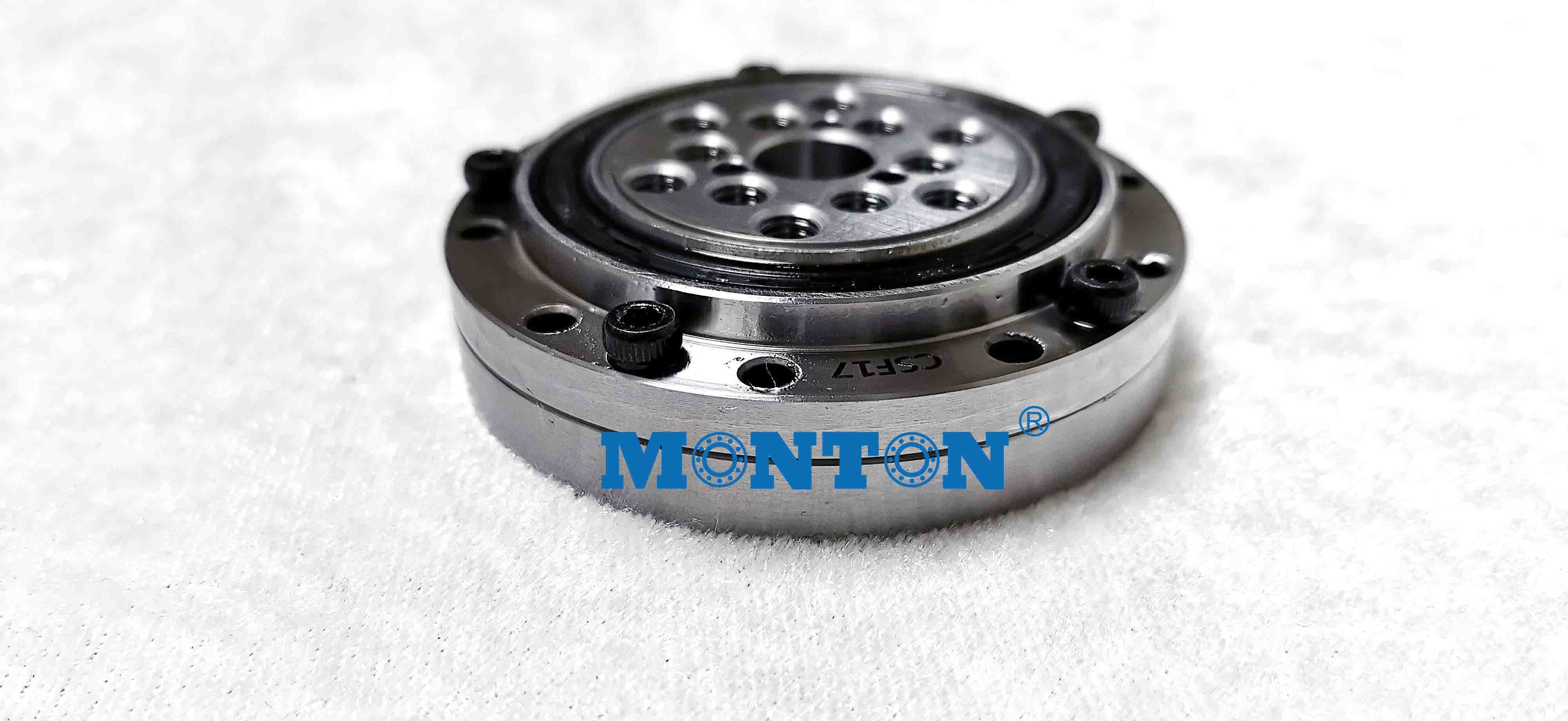

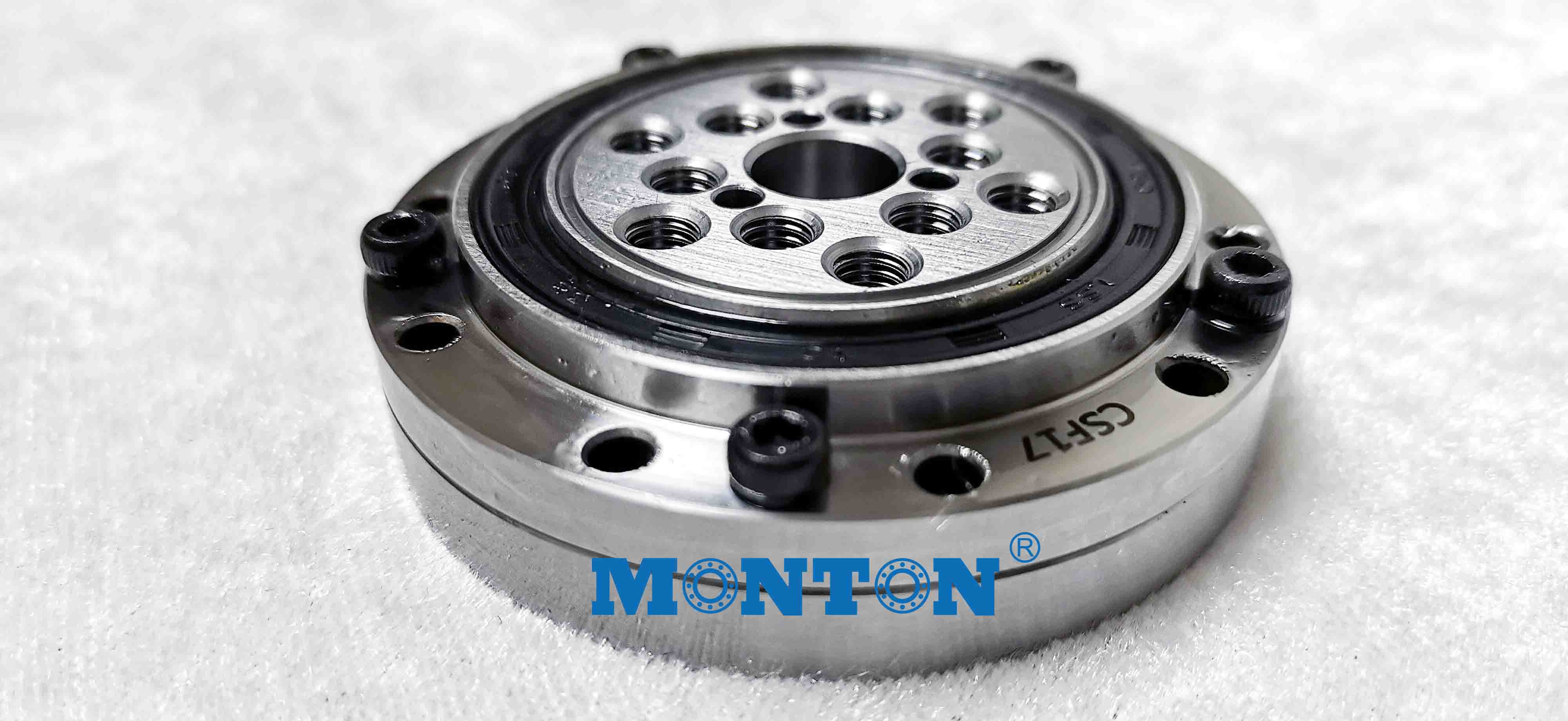

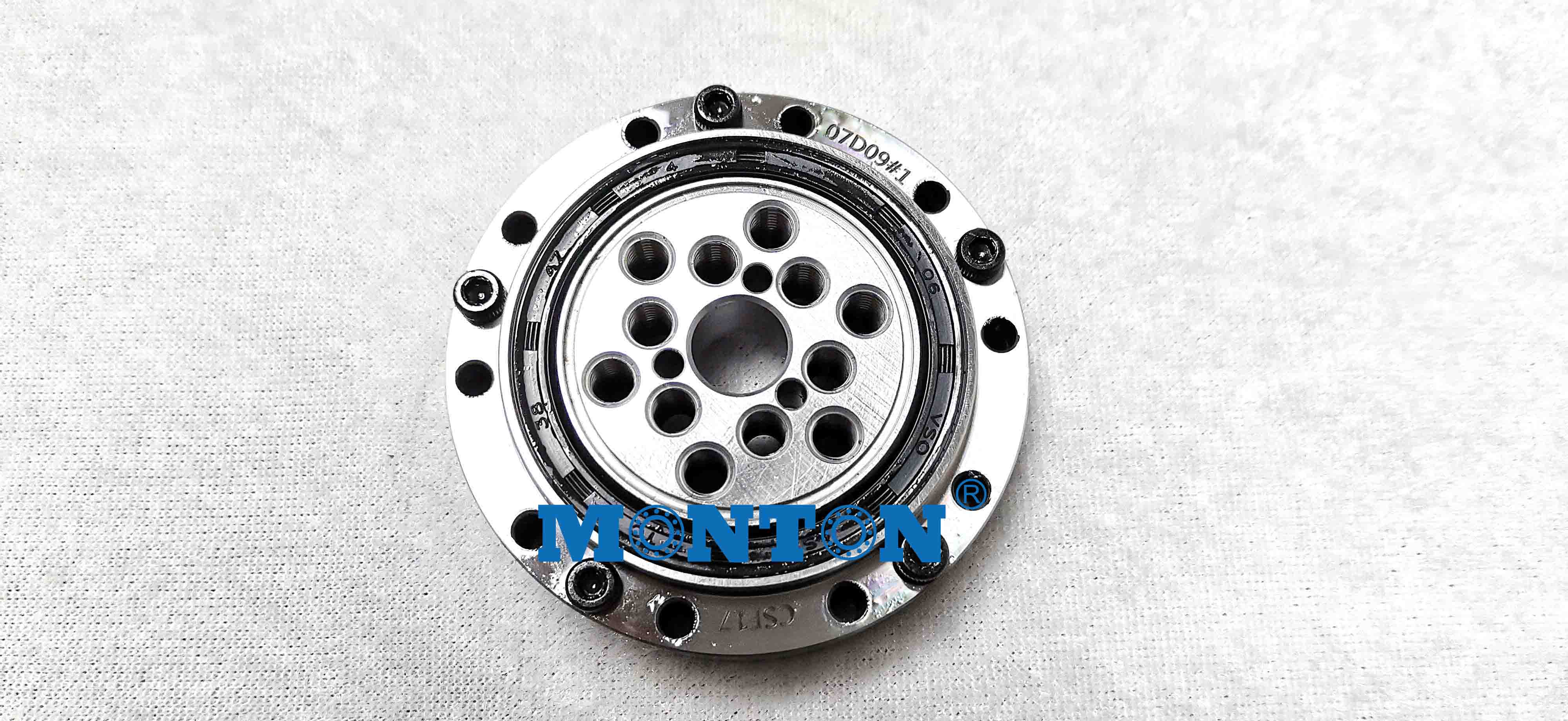

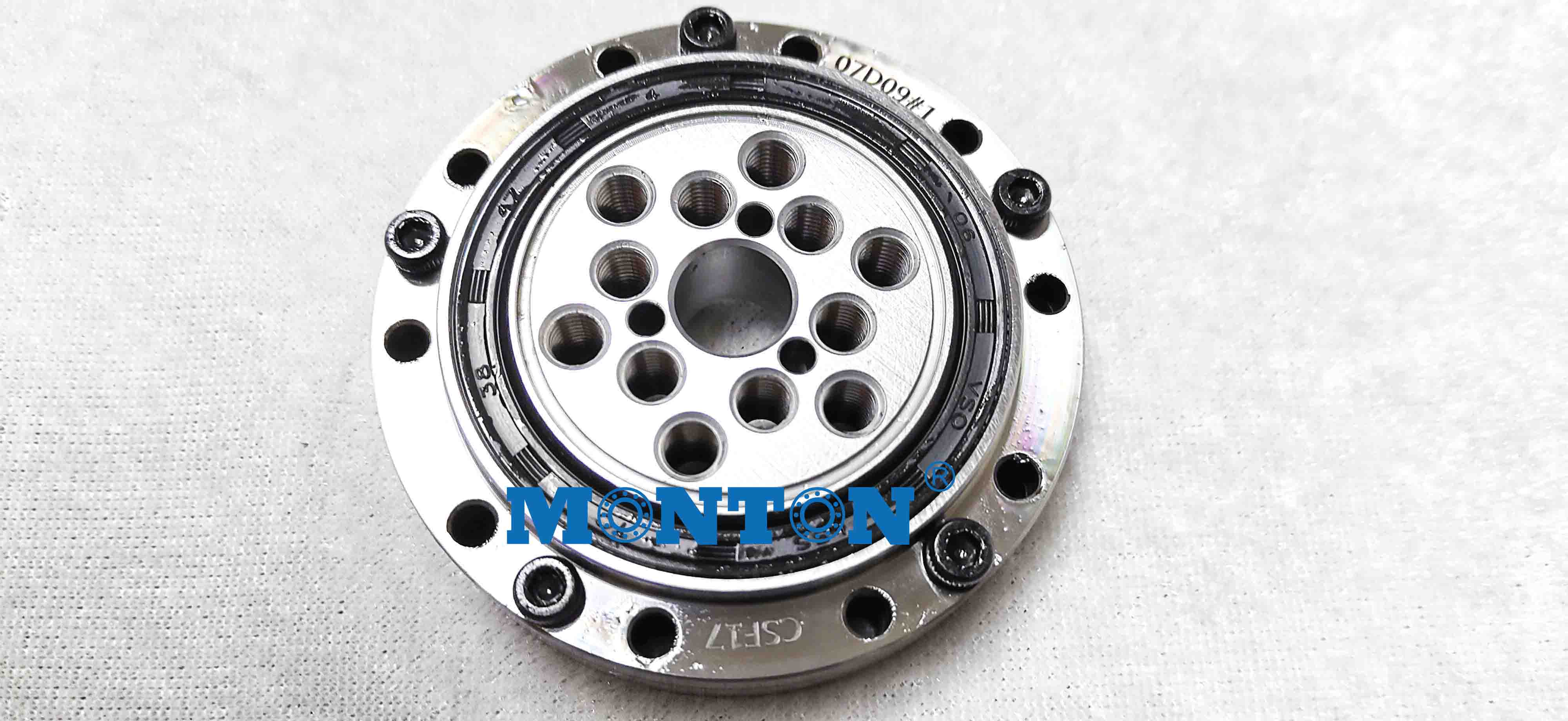

CSF17-4216 crosser roller bearing
CSF17-4216 crosser roller bearing
CSF17-4216 crosser roller bearing
- Bearing:CSF17-4216
- Type:Crossed roller bearing
- d:10mm
- D:62mm
- T:16.5mm
- rs min:0.3 x 45 °
- Cr:5.2
- cor:6.4
- Weight:0.27Kg
- Origin:Luoyang
- Delivery:Stock
- Price:Ask
CSF17-4216 crosser roller bearing
| Designation | Dimensions (h/li) | Basic Load ratings(KN) | Weight | ||||||||||||||
| Bearing | d | D | T | D1 | D2 | D21 | D3 | n1-d1 | n2-d2 | n21-d21 | n3-d3 | d31 | t31 | rsmin | Cr | Cor | kg |
| CSF17-4216 | 10 | 62 | 16.5 | 56 | 27 | 17.5 | 17.5 | 10-φ3.5 | 6-M5 | 6-M4 | 2-φ3 | --- | --- | 0.3 x 45 ° | 5.2 | 6.4 | 0.27 |
