CSF20-5016 14*70*16.5mm crossed roller bearing for harmonic drive reducer
Home / MONTON Bearing / Sales Center / CSF20-5016 14*70*16.5mm crossed roller bearing for harmonic drive reducer
CSF20-5016 14*70*16.5mm crossed roller bearing for harmonic drive reducer
CSF20-5016 14*70*16.5mm crossed roller bearing for harmonic drive reducer
- Bearing:CSF20-5016
- d:14mm
- D:70mm
- T:16.5mm
- Weight:0.36KG
- Price:ask
- Delivery:stock
- Packing:Single box
- Original:Luoyang
- Brand:MONTON
CSF20-5016
| Designation | Dimensions (h/li) | Basic Load ratings(KN) | Weight | ||||||||||||||
| Bearing | d | D | T | D1 | D2 | D21 | D3 | n1-d1 | n2-d2 | n21-d21 | n3-d3 | d31 | t31 | rsmin | Cr | Cor | kg |
| CSF20-5016 | 14 | 70 | 16.5 | 64 | 32 | 24 | 19 | 12-φ3.5 | 8-M6 | 8-M5 | 4-φ3 | 4-φ2.8 | 7 | 0.3 x 45 ° | 6.1 | 8.4 | 0.36 |
SHG/SHF series composition is a component - centered, easy-to-operate combination harmonic reducer product.With precision and high rigidity crossed roller bearing inside,used for holding(main bearing) external loading.
Features
(1)Large diameter hollow hole. flat shape
(2)Compact design
(3)High torque capacity
(4)High rigidity
(5)No backlash
(6)Excellent positioning accuracy and rotation accuracy
(7)Input and output are coaxial
(8)SHG harmonic reducer is used for high torque case,its torque is 30% higher than SHF reducer’s,also the life time is 43% longer(10000hours).

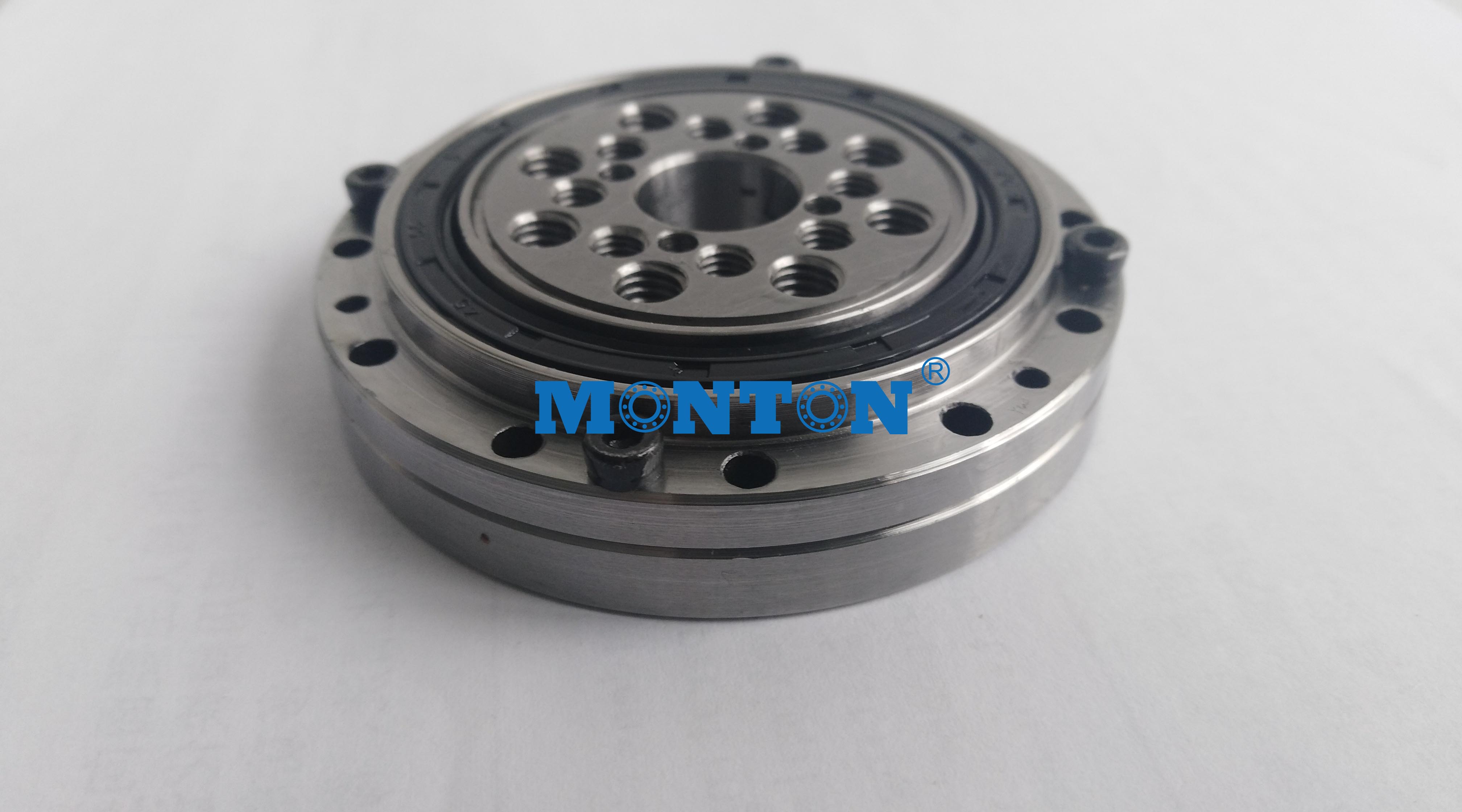

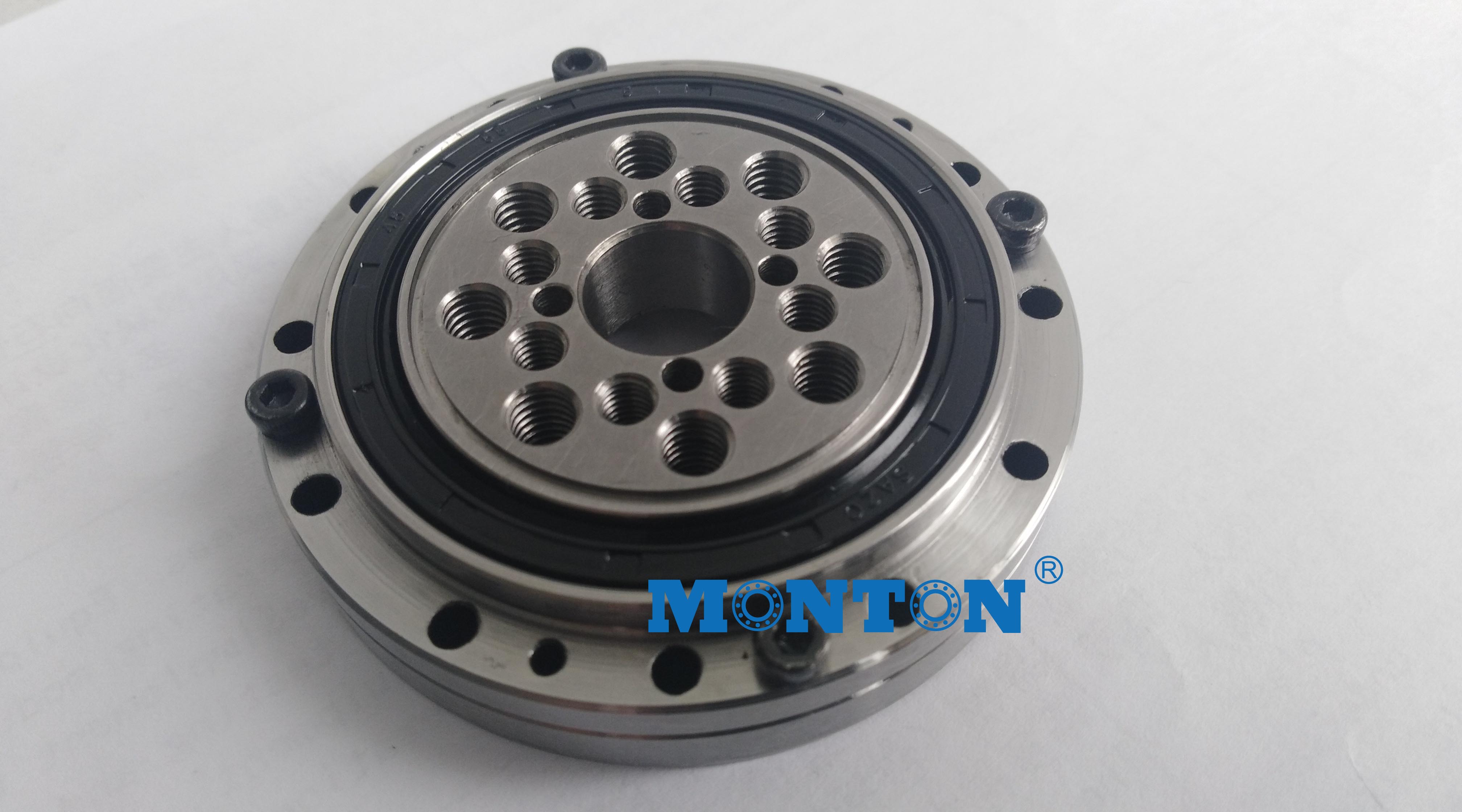

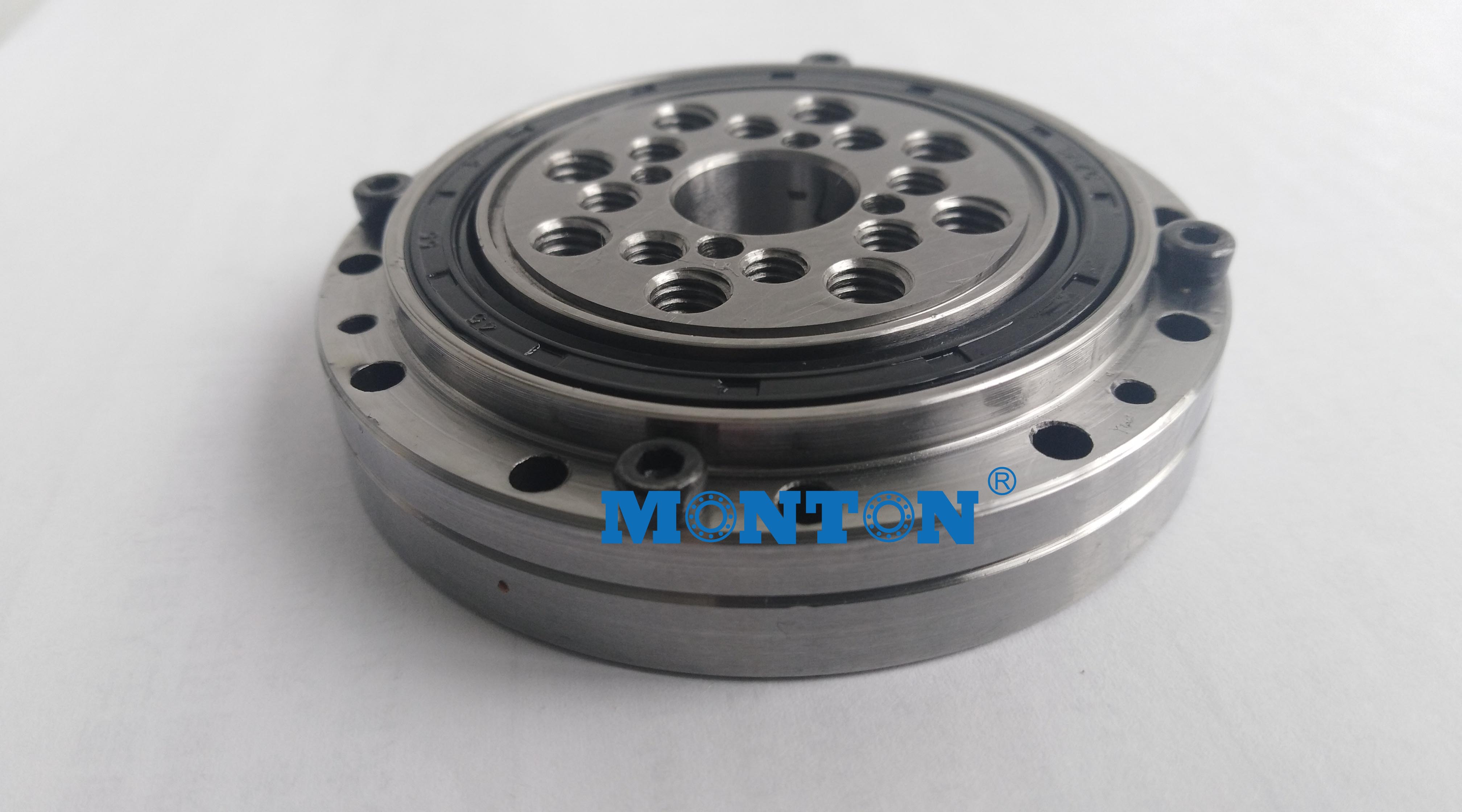

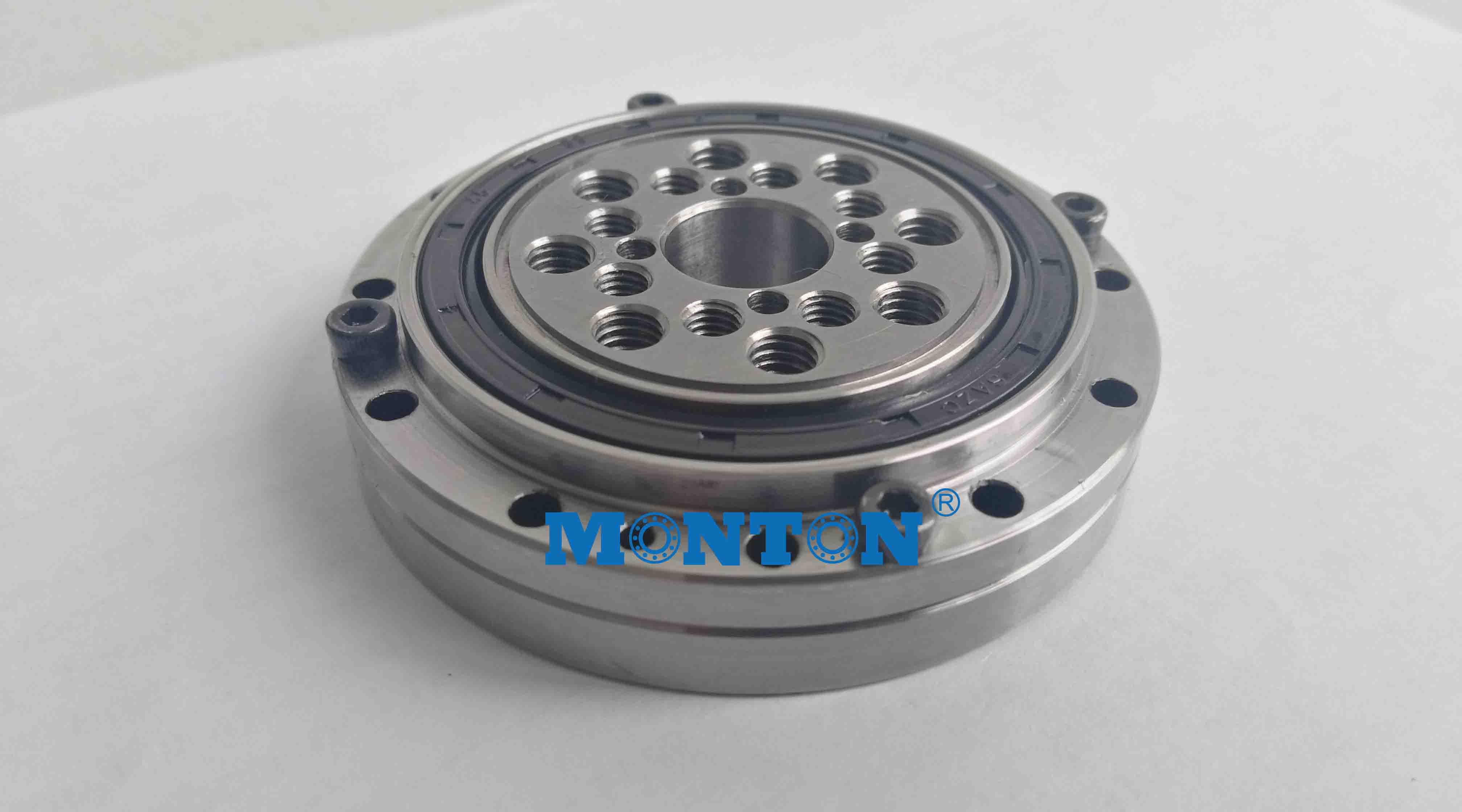

CSF20-5016 photos
