Product Description

62 Series

>>

<<

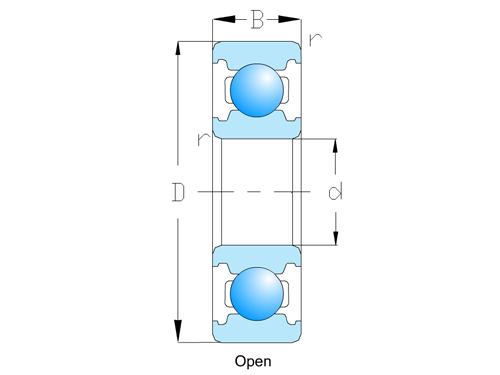

Select	Download	Inquiry	Bearing NO.	Shape Dimension								Basic Load Rating(N)		Weight
Select	Download	Inquiry	Bearing NO.	d(mm)	d(inch)	D(mm)	D(inch)	B(mm)	B(inch)	r min(mm)	r min(inch)	Dynamic( Cr)	Static( Cor)	(kg)
			624	4	0.1575	13	0.5118	5	0.1969	0.2	0.0079	1150	400	0.0032
			625	5	0.1969	16	0.6299	5	0.1969	0.3	0.0118	1880	680	0.0051
			626	6	0.2362	19	0.7480	6	0.2362	0.3	0.0118	2800	1060	0.0086
			627	7	0.2756	22	0.8661	7	0.2756	0.3	0.0118	3290	1360	0.0131
			628	8	0.3150	24	0.9449	8	0.3150	0.3	0.0118	3330	1410	0.0170
			629	9	0.3543	26	1.0236	8	0.3150	0.3	0.0118	4160	1780	0.0191
			6200	10	0.3937	30	1.1811	9	0.3543	0.6	0.0236	5110	2380	0.0320
			6201	12	0.4724	32	1.2598	10	0.3937	0.6	0.0236	6180	3060	0.0370
			6202	15	0.5906	35	1.3780	11	0.4331	0.6	0.0236	7450	3700	0.0450
			6203	17	0.6693	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.0650
			6204	20	0.7874	47	1.8504	14	0.5512	1	0.0394	12840	6650	0.1060
			6205	25	0.9843	52	2.0472	15	0.5906	1	0.0394	14020	7930	0.1280
			6206	30	1.1811	62	2.4409	16	0.6299	1	0.0394	19460	11310	0.1990
			6207	35	1.3780	72	2.8346	17	0.6693	1.1	0.0433	25670	15300	0.2880
			6208	40	1.5748	80	3.1496	18	0.7087	1.1	0.0433	29520	18140	0.3660
			6209	45	1.7717	85	3.3465	19	0.7480	1.1	0.0433	31500	20400	0.4200
			6210	50	1.9685	90	3.5433	20	0.7874	1.1	0.0433	35000	23200	0.4590
			6211	55	2.1654	100	3.9370	21	0.8268	1.5	0.0591	43500	29300	0.6190
			6212	60	2.3622	110	4.3307	22	0.8661	1.5	0.0591	52500	36000	0.7830
			6213	65	2.5591	120	4.7244	23	0.9055	1.5	0.0591	57500	40000	1.0000
Previous12 Next

>>

<<
