  • Bearing:CRBT305A
  • d:30mm
  • D:41mm
  • B:5mm
  • rmin:0.15
  • da:32.5
  • Da:37
  • C:1770N
  • C0:1970N
  • Mass:20.7g
Inquiry Now

CRBT305A


Identification numberBoundary dimensions (mm)Mounting
dimensions   (mm)
Basic dynamic
load rating C
Basic static
load rating C0
Mass
(Ref.) g
dDBrmindaDaNN
CRBT305A304150.1532.5371770197020.7

What are Crossed Roller Bearings?

Crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner

and outer rings. The orthogonal array of the rollers allows the bearing to handle complex loads simultaneously from any direction, which makes assembly possible without needing to worry about load direction.

Compact Hand Robot

Crossed Roller Bearings feature high rotational accuracy and high rigidity which minimizes deflection, making them ideal for the

swivel parts of hand robots, that require accurate positioning motion.

Compact Surveillance Camera

Crossed Roller Bearings can receive complex loads from various directions, making them ideal bearings for supporting surveillance

cameras which are in constant 24-hour operation.

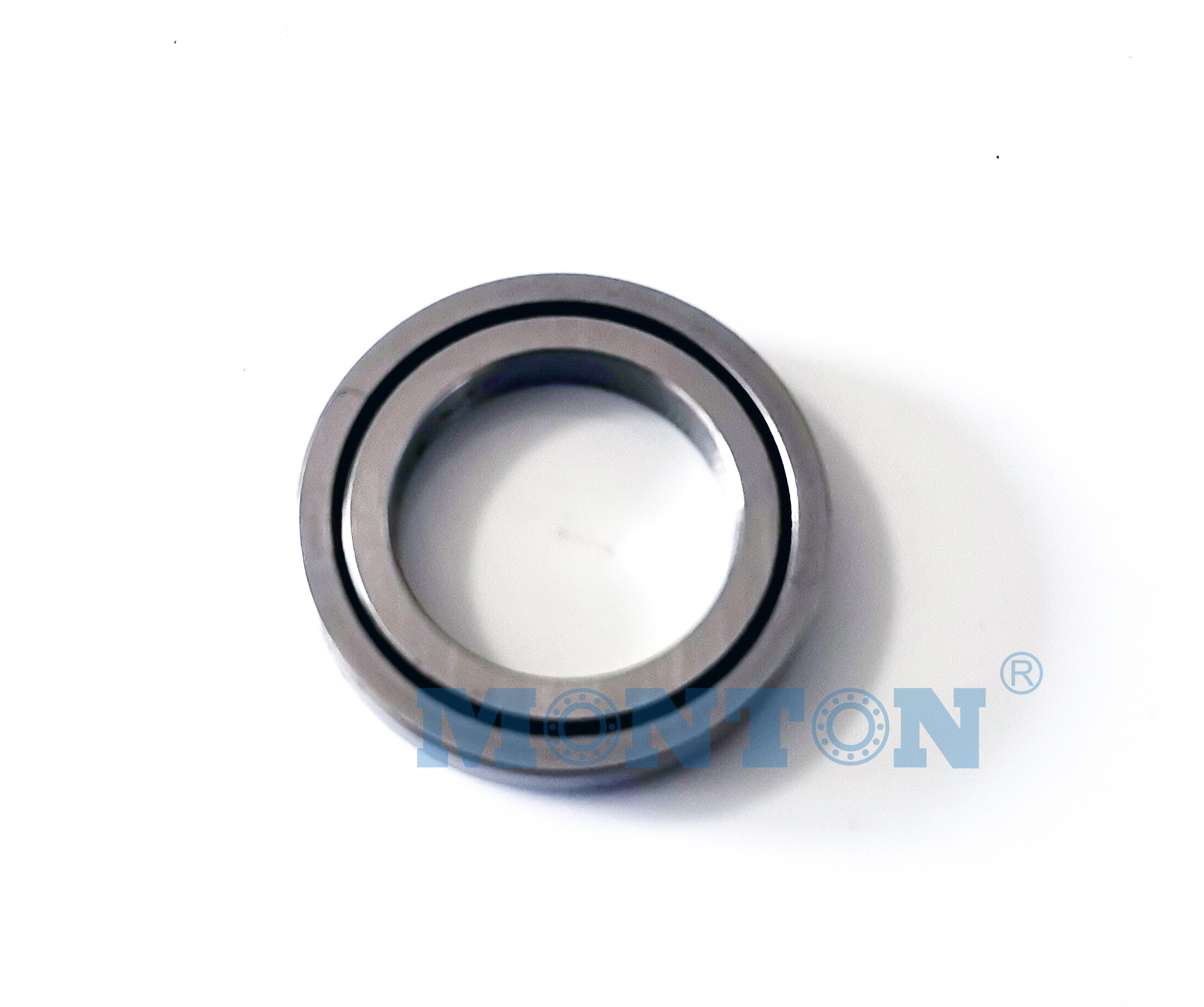

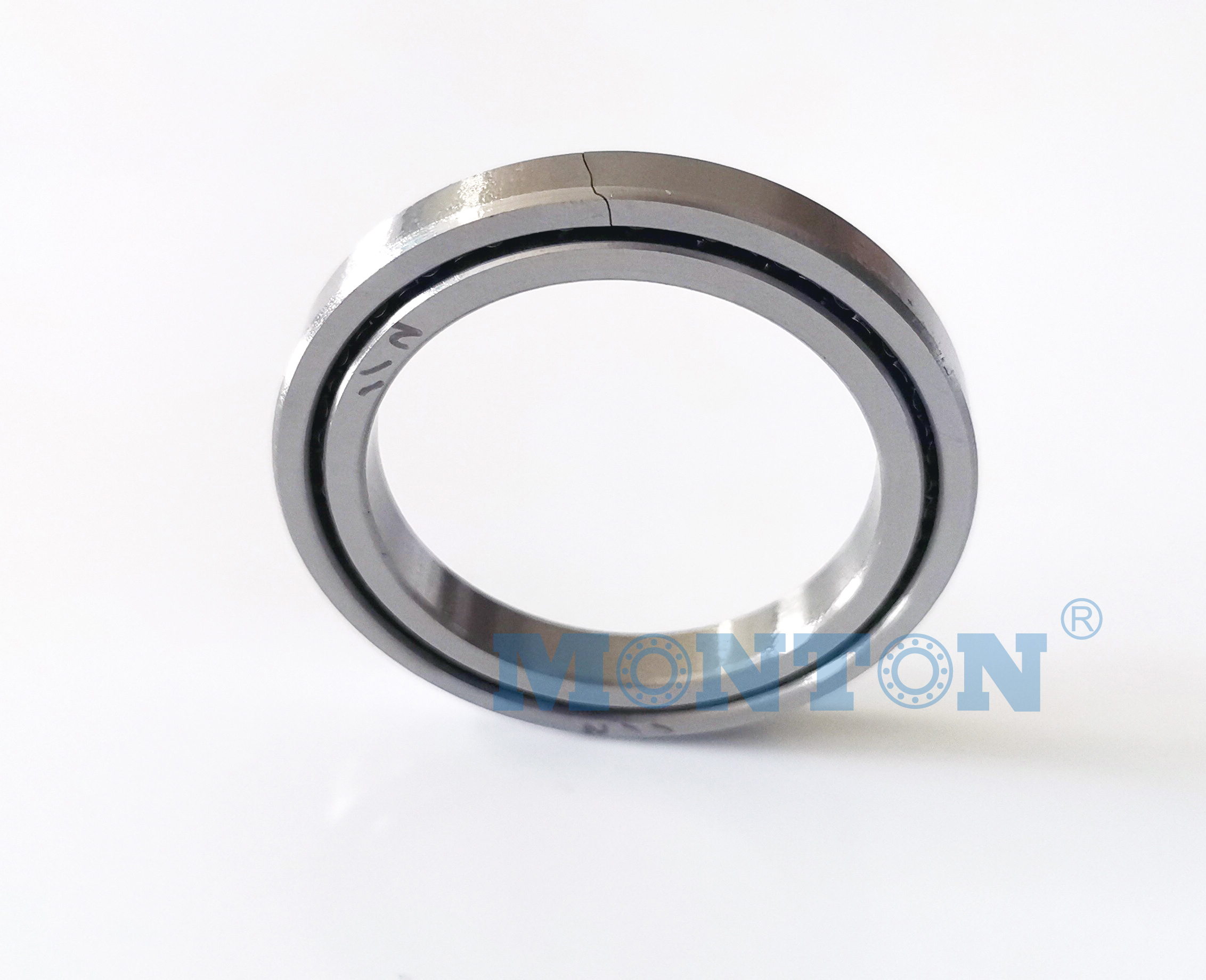

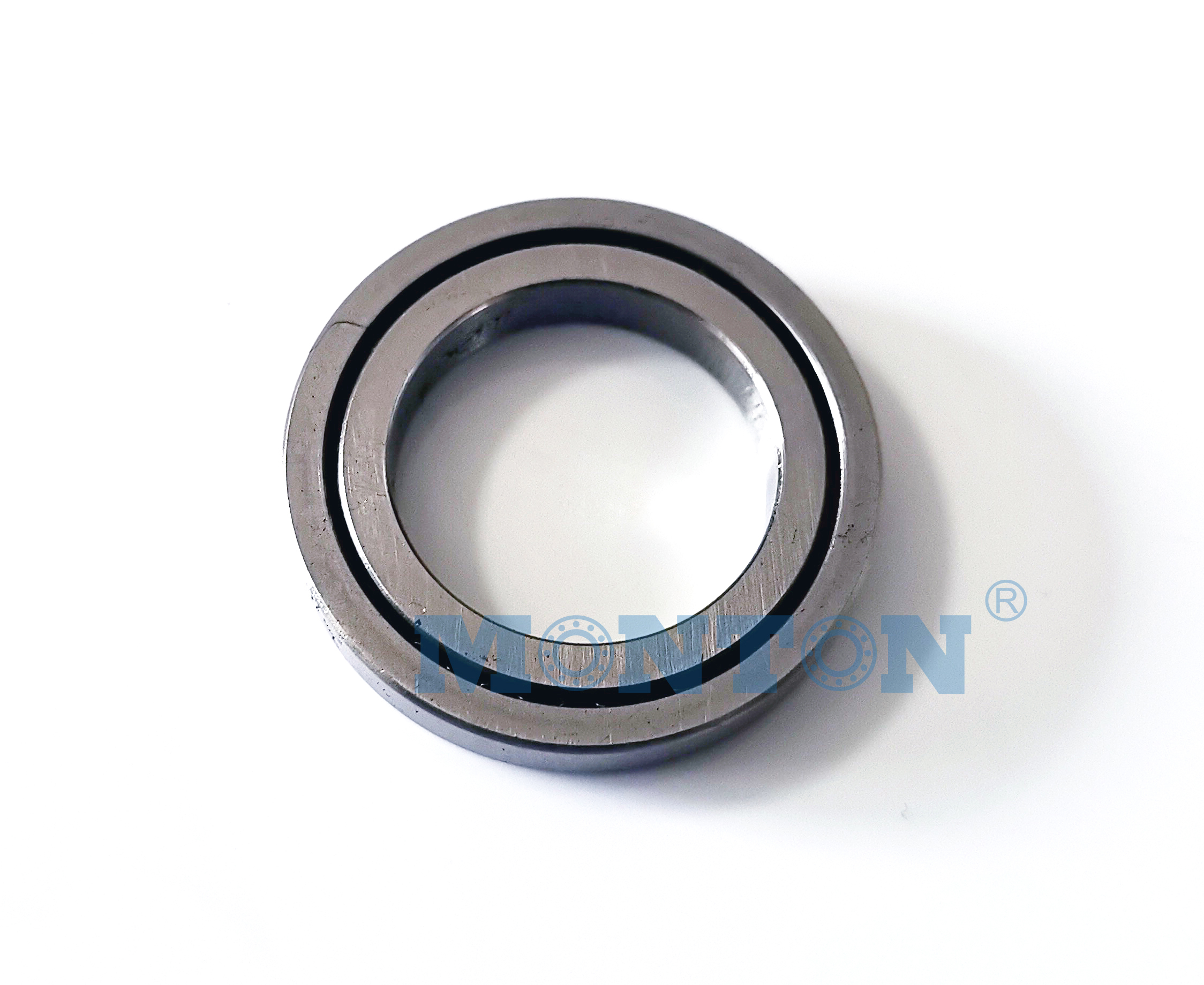

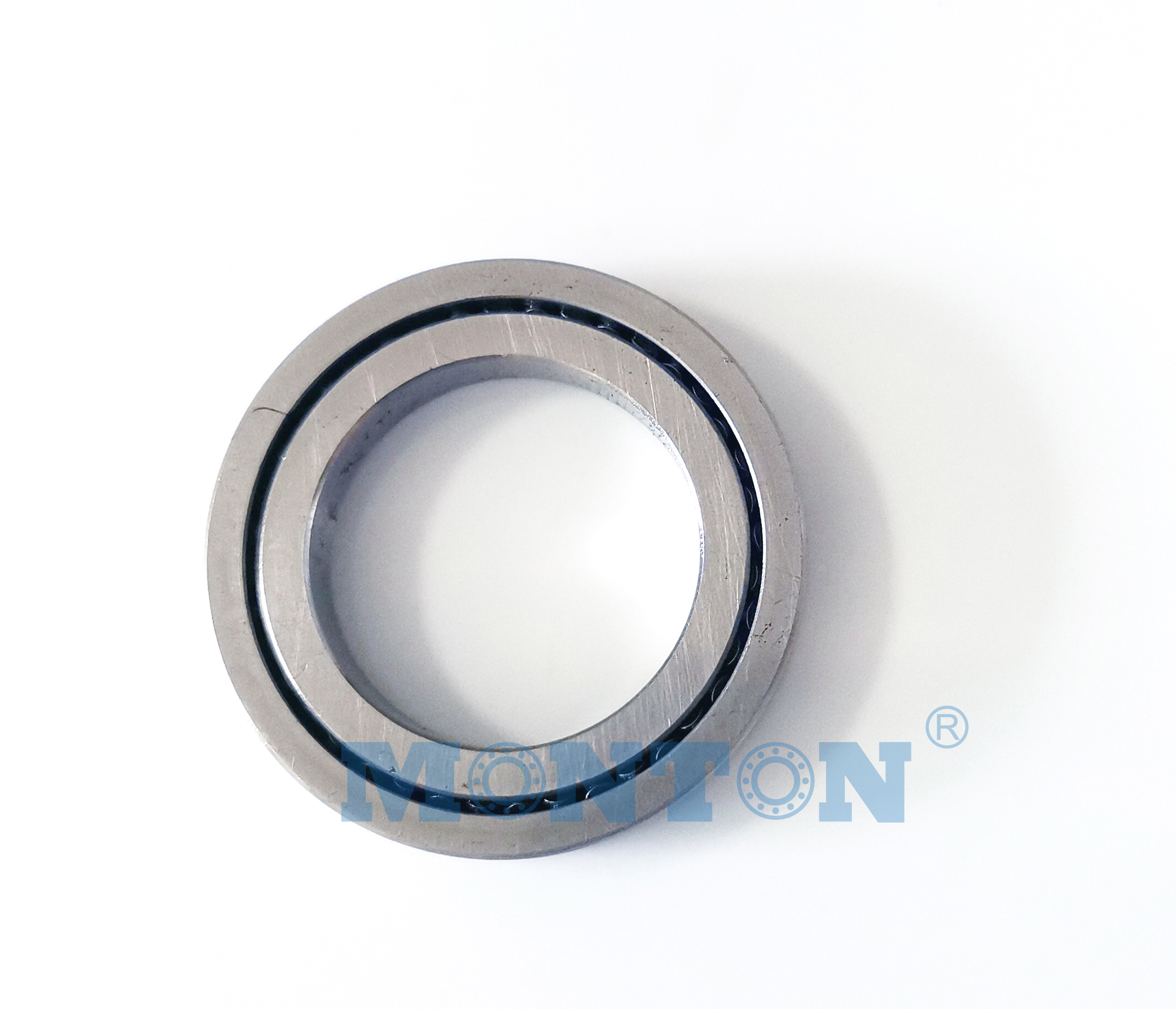

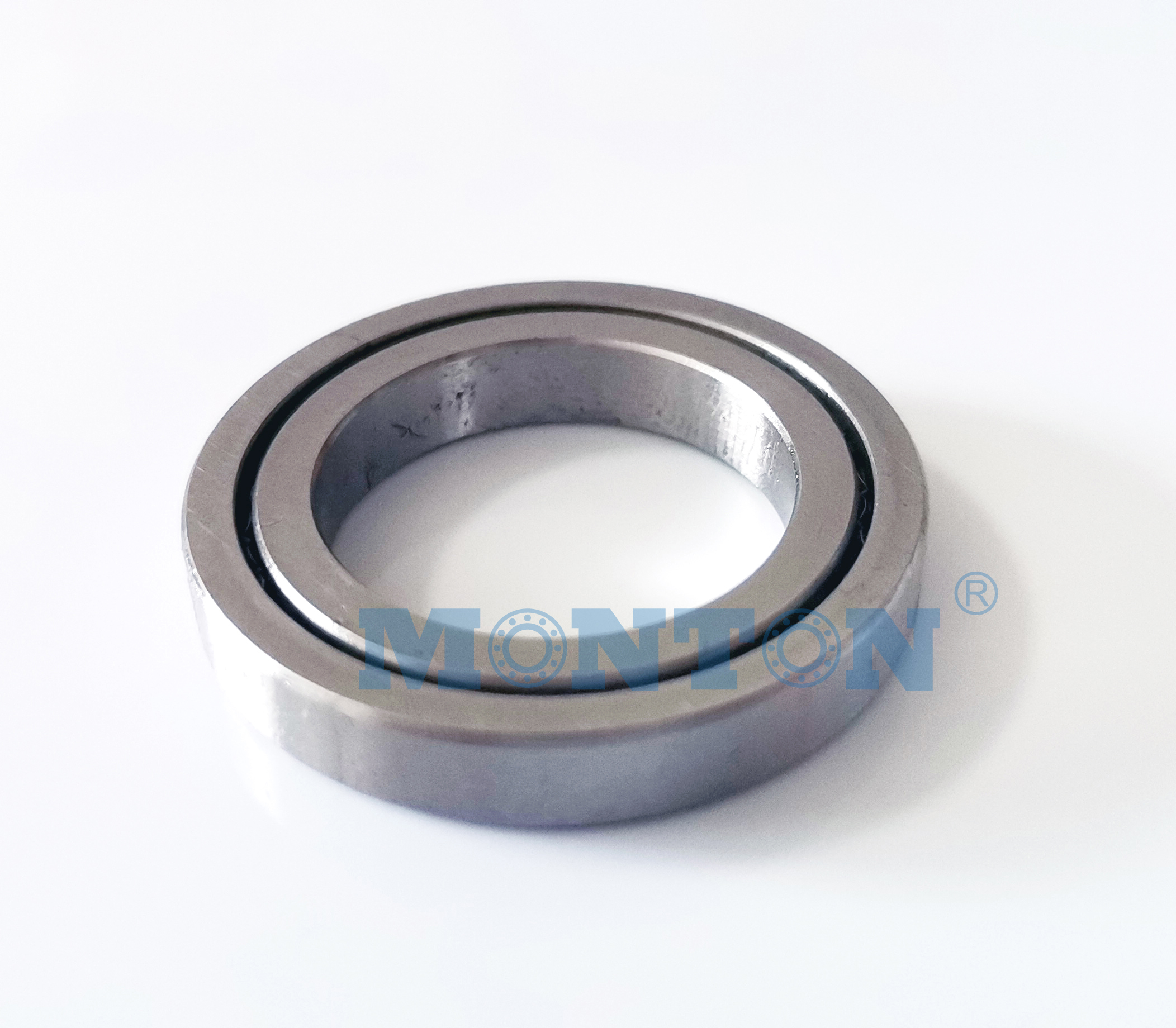

CRBT305A photos
