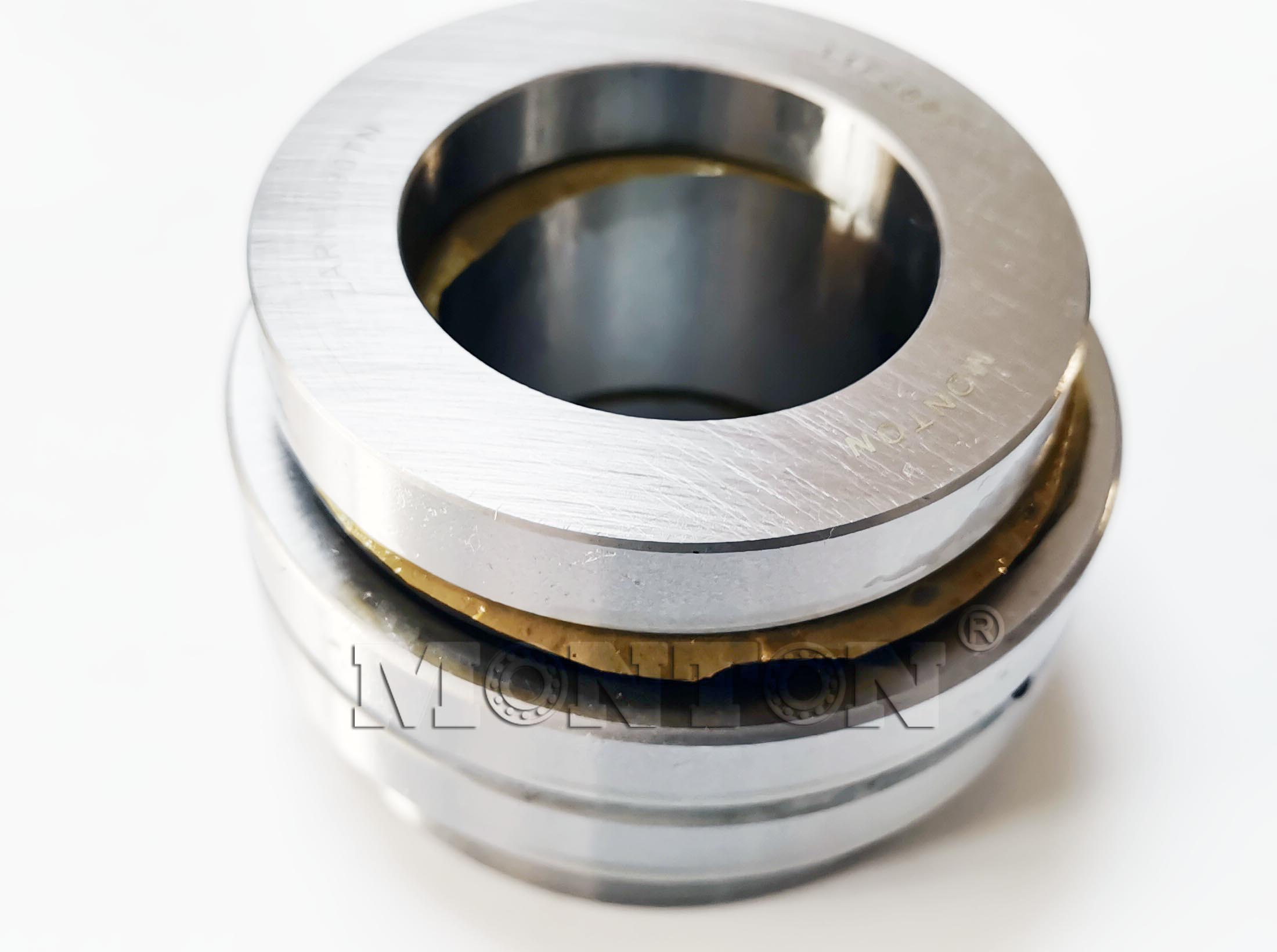

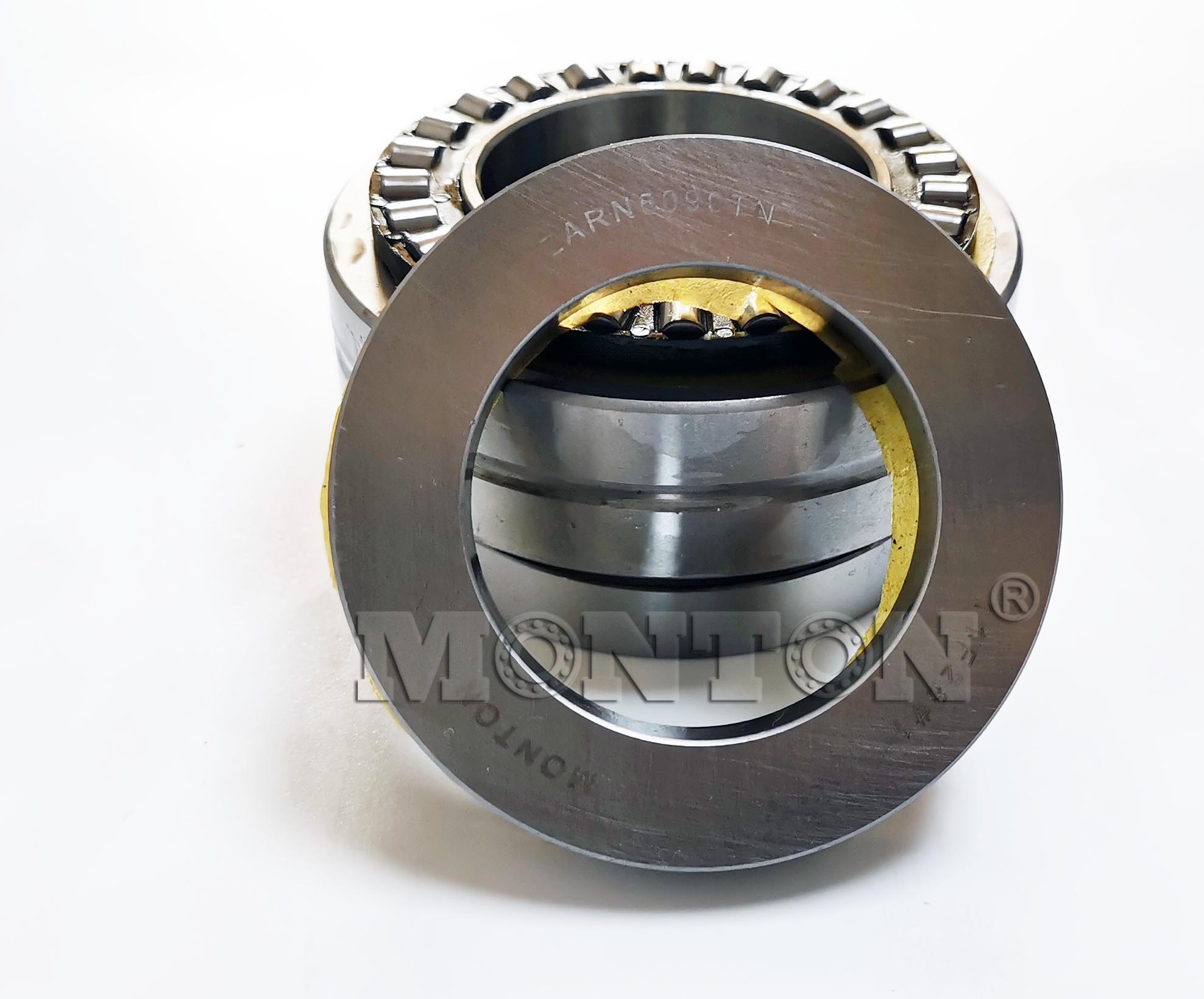

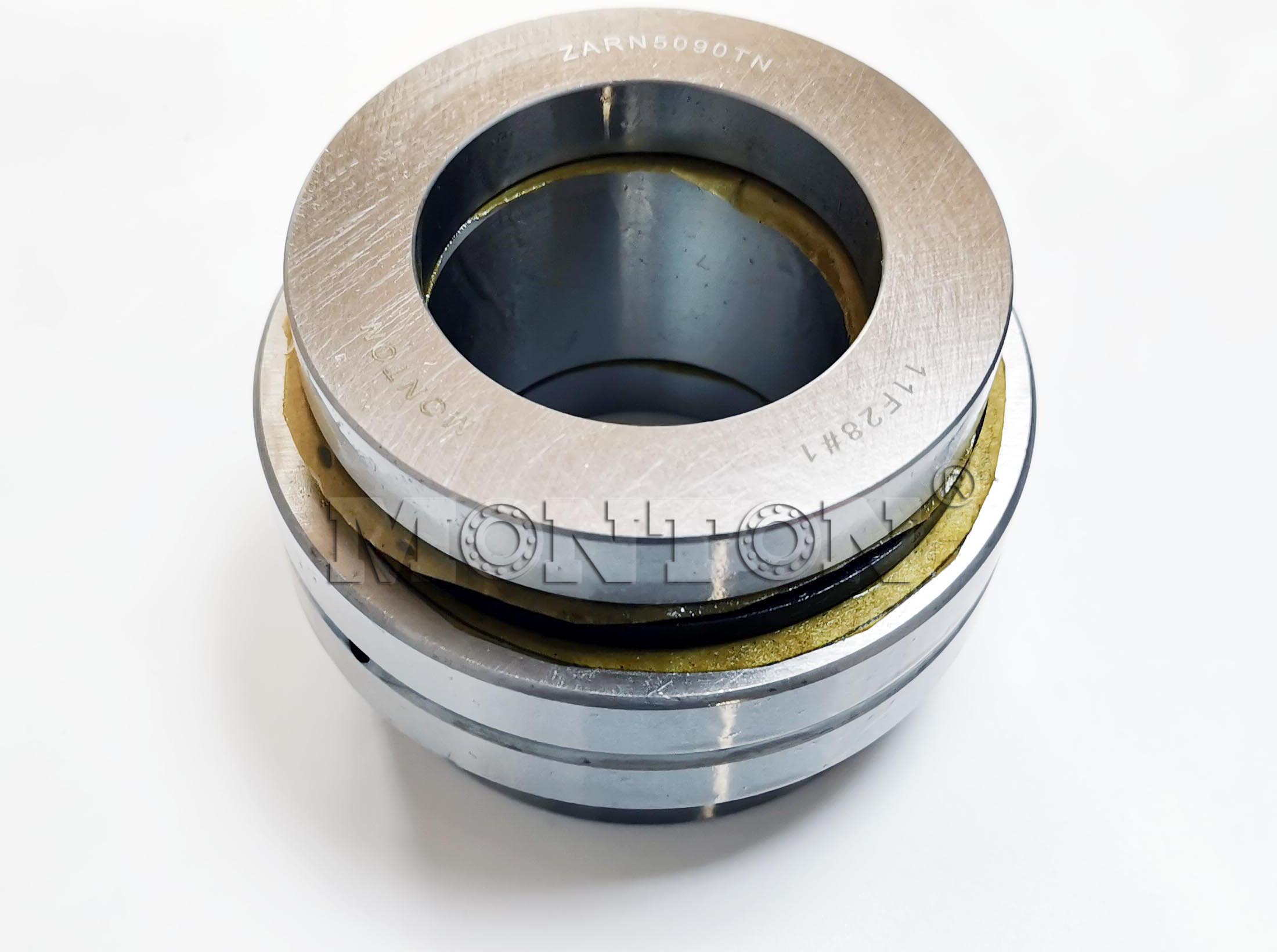

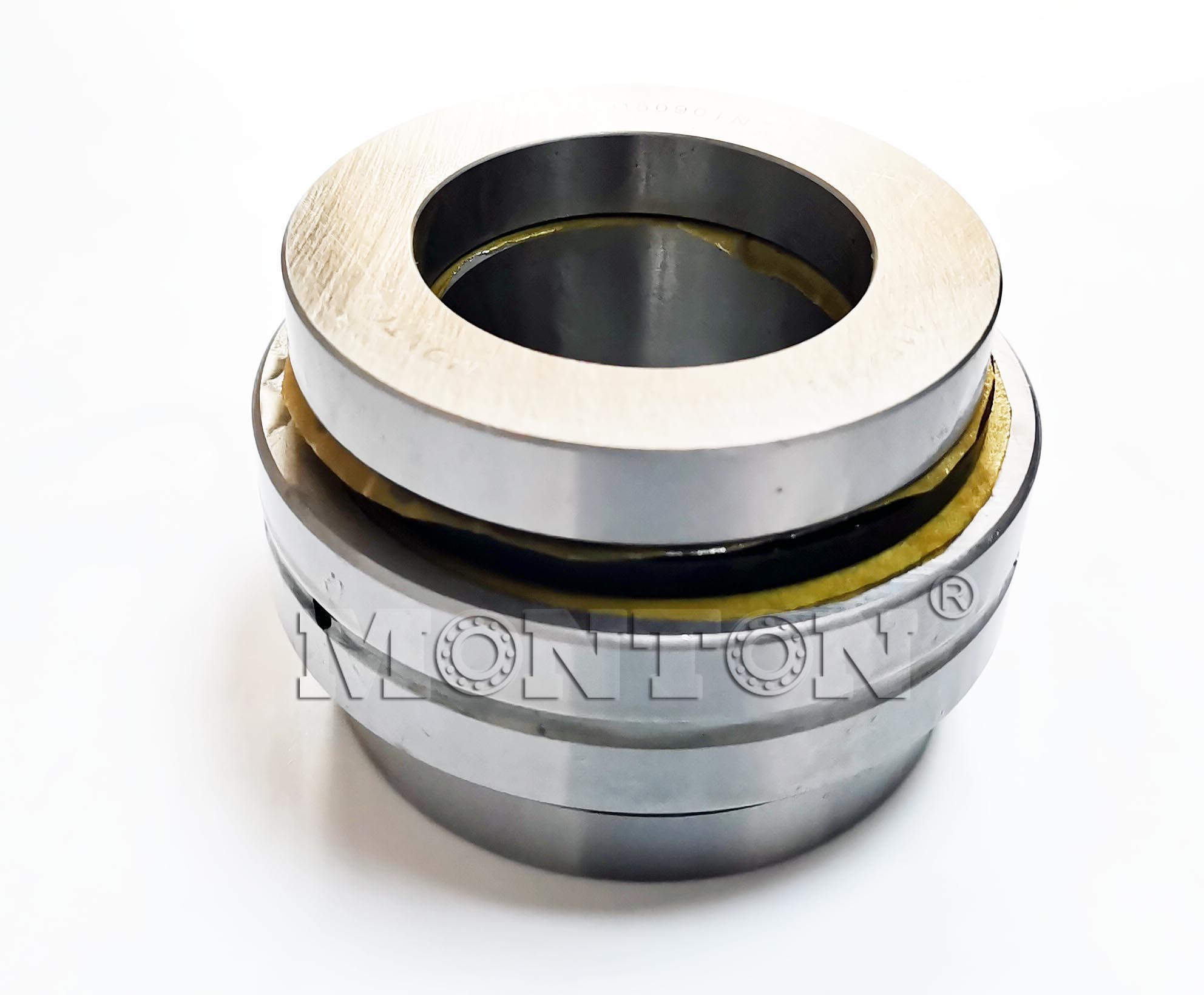

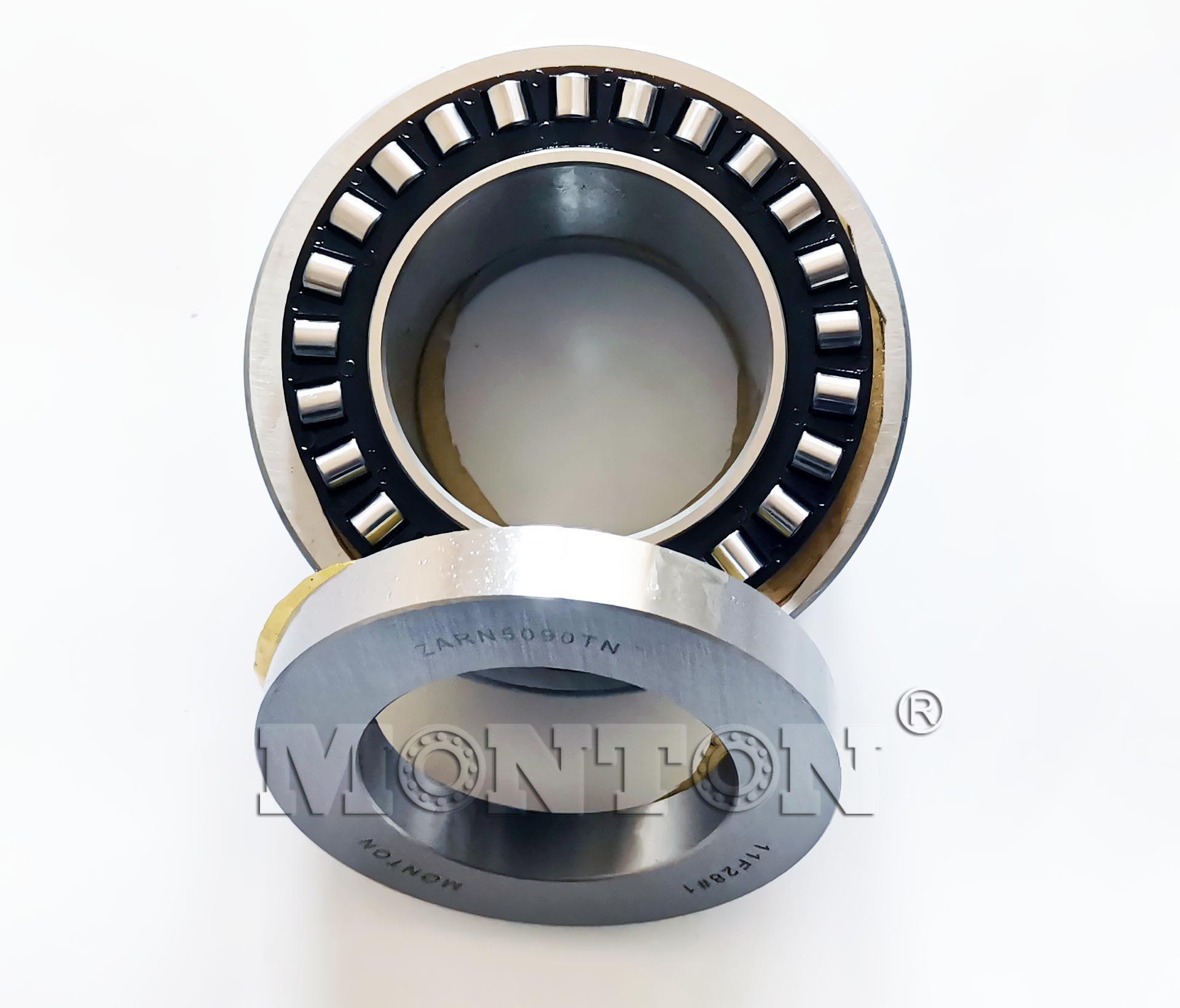

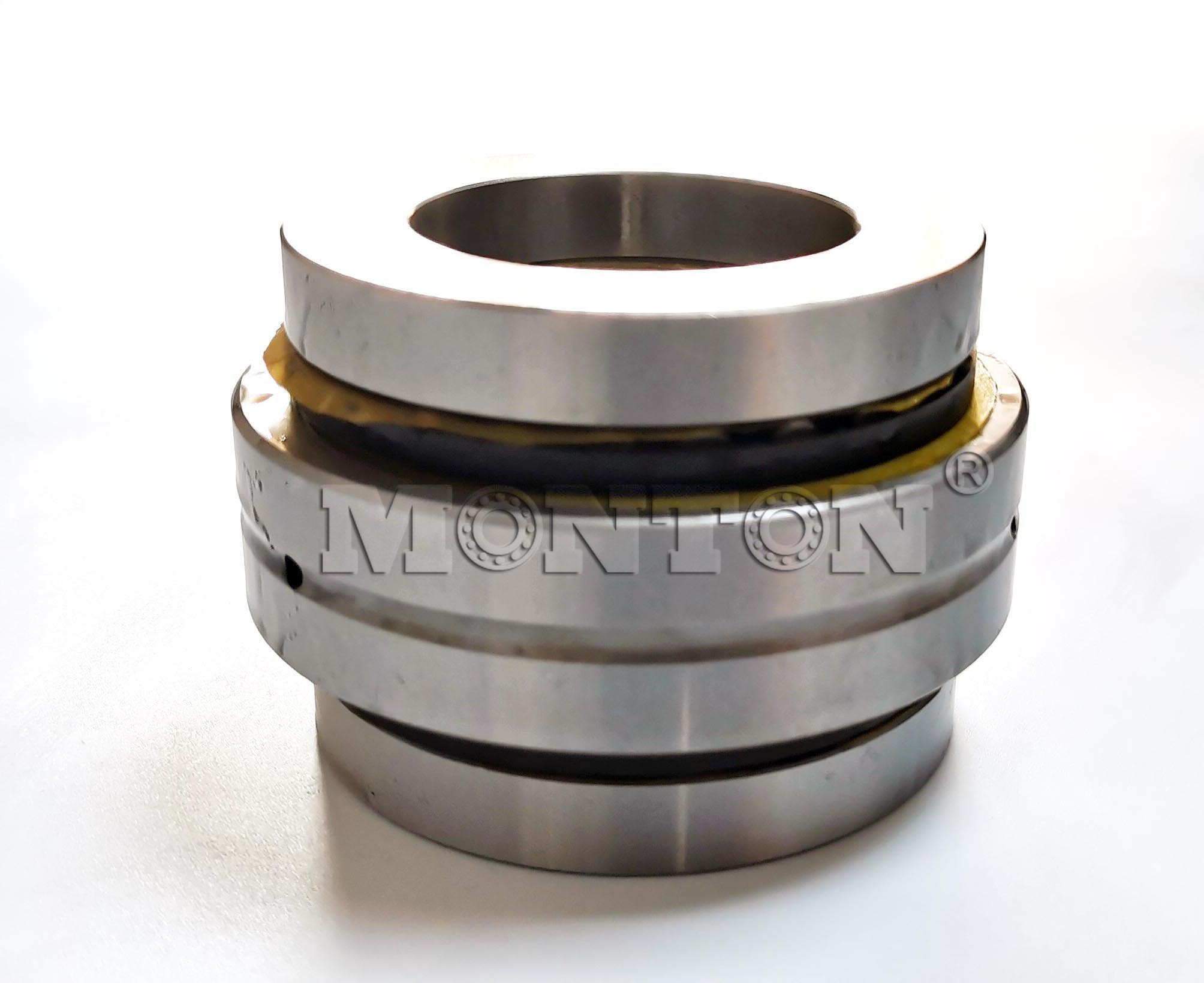

ZARN5090-TV Axial angular contact ball bearings Needle roller/axial cylindrical roller bearings

Designation	Dimensions															Basic load ratings				Limiting speeds		Bearing frictional torque MRL Nm	Rigidity axial caL N/µm	Tilting rigidity ckL Nm/ mrad	Mass moment of inertia3) Mm kg · cm2	Axial runout6) µm	Mass m =kg
																axial		radial		Limiting speeds
																dyn.Ca	stat. C0a	dyn.Cr	stat. C0r	nG oil	nG grease
	d	D	H	H1	H2	H3	C	D1	D2	D3	B	B1	B2	r min.	r1 min.	N	N	N	N	min–1	min–1
ZARN5090-TV	50	90	60	42.5	–	–	25	78	–	–	11.5	–	–	0.3	0.6	90,000	300,000	40,000	82,000	3,600	1,200	2.2	4,800	2,470	8.42	1	1.43
ZARN5090-L-TV	50	90	–	–	78	60.5	25	78	60	78	11.5	29.5	12	0.3	0.6	90,000	300,000	40,000	82,000	3,600	1,200	2.2	4,800	2,470	10.46	1	1.78
