YRT120P4 120*210*40mm YRT rotary table bearing
YRT120P4 120*210*40mm YRT rotary table bearing
YRT120P4 120*210*40mm YRT rotary table bearing
- Bearing:YRT120P4
- d:120mm
- D:210mm
- H:40mm
- Weight:5.3KG
- Application:Rotary table
- Original:Luoyang
- Delivery:Stock
- Price:Ask
- Packing:Wooden case
- Brand:MONTON
YRT120P4
YRT200P4
| bearing type | Dimensions | fixing holes | Number of retaining screws | ||||||||||||
| d | D | H | H1 | C | D1 | J | J1 | inner ring | outer ring | ||||||
| unit： mm | d1 | d2 | a | qty | d3 | qty | |||||||||
| mm | mm | ||||||||||||||
| YRT120 | 120 | 210 | 40 | 26 | 12 | 184 | 135 | 195 | 7 | 11 | 6.2 | 22 | 7 | 21 | 2 |
| bearing type | Extraction thread hole | Number of pitches X angle of pitches | Screw tightening torque | Basic load rating | Limiting speed | Bearing frictional torque | weight | ||||
| axial | radial | ||||||||||
| dynamic load | static load | dynamic load | static load | ||||||||
| MA2) | Ｃａ | Coa | Cr | Cor | grease | ||||||
| G | qty | qty×t | Ｎｍ | KN | r/min | Nm | Kg | ||||
| YRT120 | M8 | 3 | 24×15° | 14 | 102 | 540 | 52 | 143 | 340 | 7 | 5.3 |
| Machining tolerances for shafts | |||||||
| Bearings | shaft diameter （mm） | roundness（○） | perpendicularity（⊥） | parallelism（∥） | roughness Ra | ||
| Nominal dimension | upper | lower | t1（µm） | t3（µm） | t4（µm） | Ra（µm） | |
| YRT120 | 120 | 0 | -0.015 | 6 | 4 | 4 | 0.4 |
| Machining tolerances for housings | |||||||
| Bearings | （mm）housing diameter | roundness（○） | perpendicularity（⊥） | parallelism（∥） | roughness Ra | ||
| Nominal dimension | upper | lower | t1（µm） | t3（µm） | t4（µm） | Ra（µm） | |
| YRT120 | 210 | +0.022 | -0.007 | 10 | 7 | 7 | 0.8 |
YRT series turntable bearing with a set of radial roller, two groups of thrust roller cage full components of composite structure design, an outer ring, a l-shaped inner ring and the inner ring, inner and outer ring with mounting holes, and before delivery or addition of pre-load, not only simplify the structure of the components, reduced the workload of installation, reducing the high requirements for installation.Therefore, for low-speed and short-time operation occasions with high precision, high rigidity and bearing joint load requirements, such as dividing table and rotary milling head, it is extremely suitable to choose YRT series rotary table bearing.
Rotary Table Bearings:
YRT series(Standard percision grade as INA):
YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT395,YRT460,YRT580,YRT650,YRT850,YRT950,YRT1030,YRT1200
YRTC series (Standard percision grade as INA):
YRTC100,YRTC120,YRTC150,YRTC180,YRTC200,YRTC260,YRTC325,YRTC395
YRTC460,YRTC580,YRTC650,YRTC850,YRTC1030
YRTS series(Standard percision grade as INA):
YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580
YRTM series(Standard percision grade as INA):
YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580
ZKLDF series(Standard percision grade as INA):
ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460.

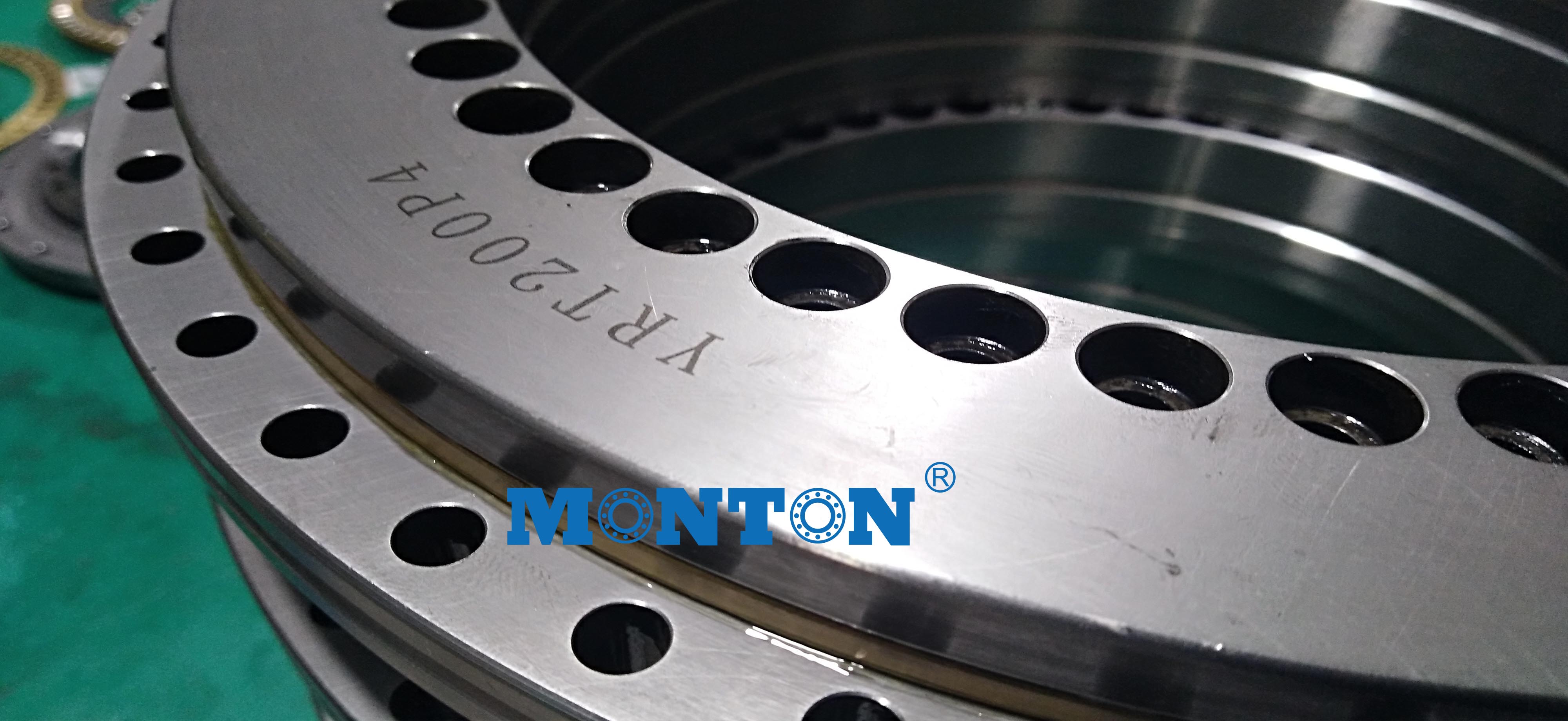

YRT200P4 Photos
