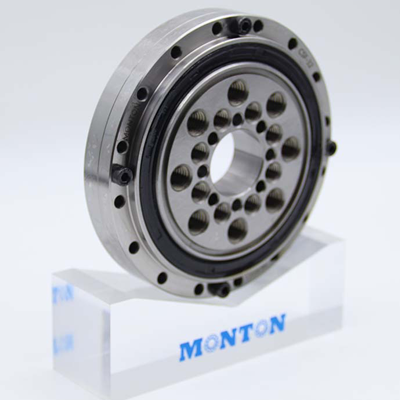

CSF harmonic drive bearings
  • CSF harmonic drive bearings
  • CSF harmonic drive bearings

CSF harmonic drive bearings

Dimension and Parameters
Request Quotation
CSF harmonic drive bearings CSF harmonic drive bearings
CSF20-5016
  • Bearing NO.
    CSF20-5016
  • Dimensions (hli)
  • d
    14
  • D
    70
  • T
    16.5
  • D1
    64
  • D2
    32
  • D21
    24
  • D3
    19
  • n1-d1
    12-φ3.5
  • n2-d2
    8-M6
  • n21-d21
    8-M5
  • n3-d3
    4-φ3
  • d31
    4-φ2.8
  • t31
    7
  • rsmin
    0.3 x 45 °
  • Basic Load ratings(KN)
  • Cr
    6.1
  • Cor
    8.4
  • Weight
    0.36
