CSD-17

Catalogue
Download PDF Download PDF     Printable Page     Email Email This Page     Save To Favorites Save To Favorites
  • Object
  • 2D drawing
CSD harmonic Drive Bearing
  • CSD harmonic Drive Bearing
  • CSD harmonic Drive Bearing

CSD harmonic Drive Bearing

Dimension and Parameters
Request Quotation
CSD harmonic Drive Bearing CSD harmonic Drive Bearing

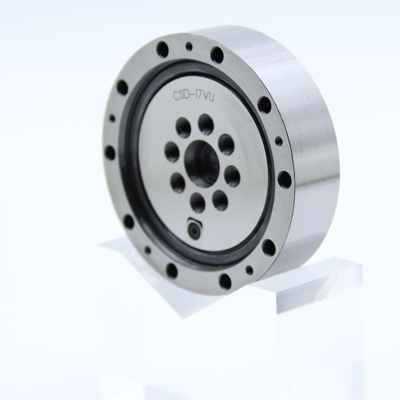

CSD-17
  • Bearing
  • Model
    CSD-17
  • Dimensions(mm)
  • d
    11
  • D
    62
  • T
    16.6
  • D2
    49.7
  • C
    16.1
  • B
    13.9
  • C1
    2.6
  • d1
    14
  • na
    10
  • Øa
    3.4
  • ni1
    8
  • Øi1
    M4
  • ni2
    8
  • Øi2
    M5
