F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing

F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing

F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing
  • F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing
  • F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing
  • F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing
  • F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing
  • F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing
  • F20 35.56*49.073*7.24mm flexible bearing for harmonic drive strain wave gear bearing
  • Bearing:F20
  • d:35.56
  • D:49.073
  • B:7.24
  • Cr:9.93KN
  • Cor:8.36KN
  • Radial Deformatio:0.3
  • Input rotate speed:3000
  • Output torque:30N*M
  • Brand:MONTON
  • Origin:China
  • Packing:single box
  • Delivery:stock
  • Price:Welcome inqury
Inquiry Now

F20 flexible bearing for harmonic drive strain wave gear bearing


BearingInner ringOuter ringWidthDynamic load   rating Static load   rating Radial   Deformation Input rotate   speed Output torque
ModelIDOD BCrCorMax.   mmr/min N.m
F2035.5649.0737.249.938.360.3300030
M2035.5649.0737.2412.63120.3300045

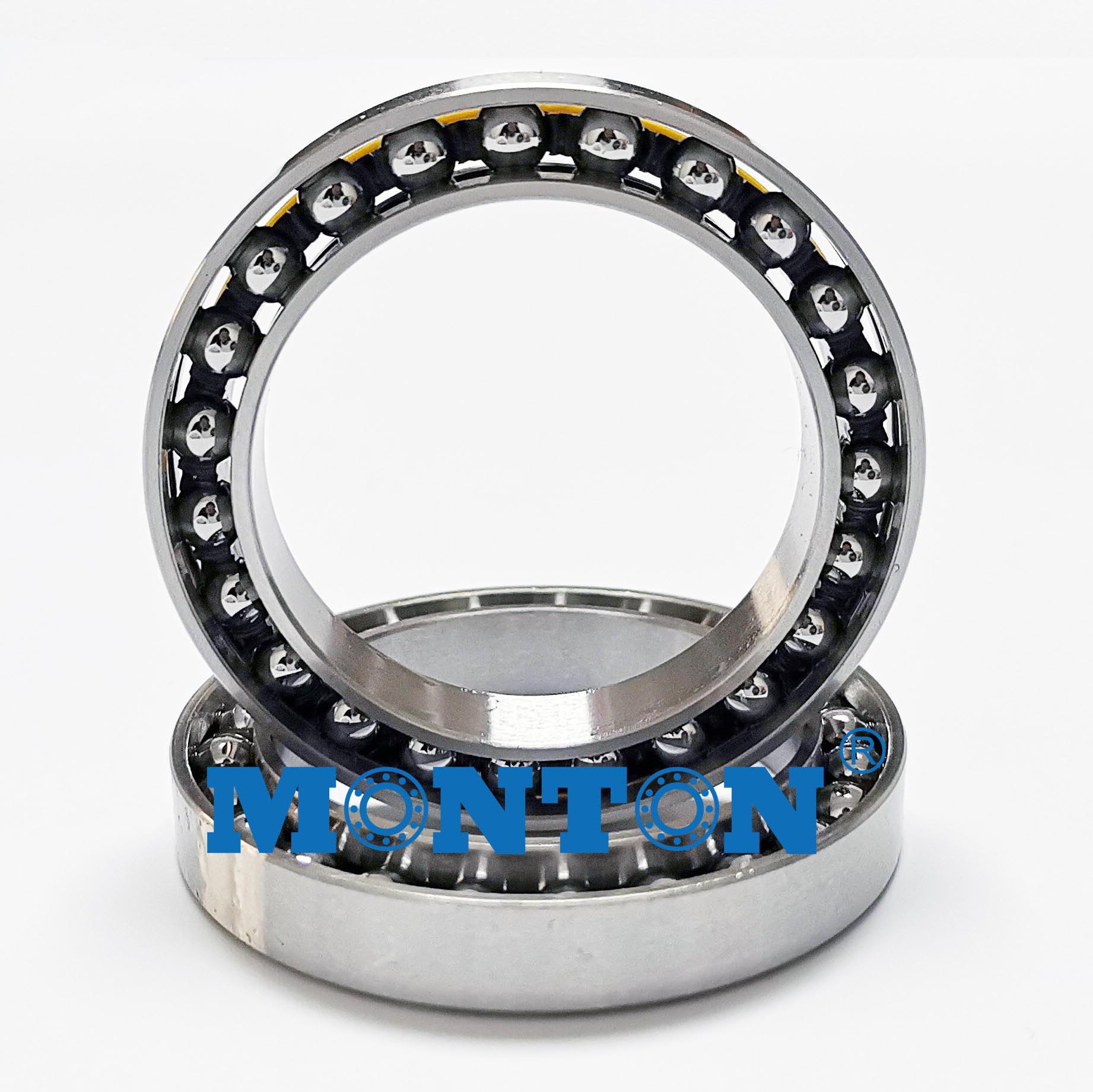

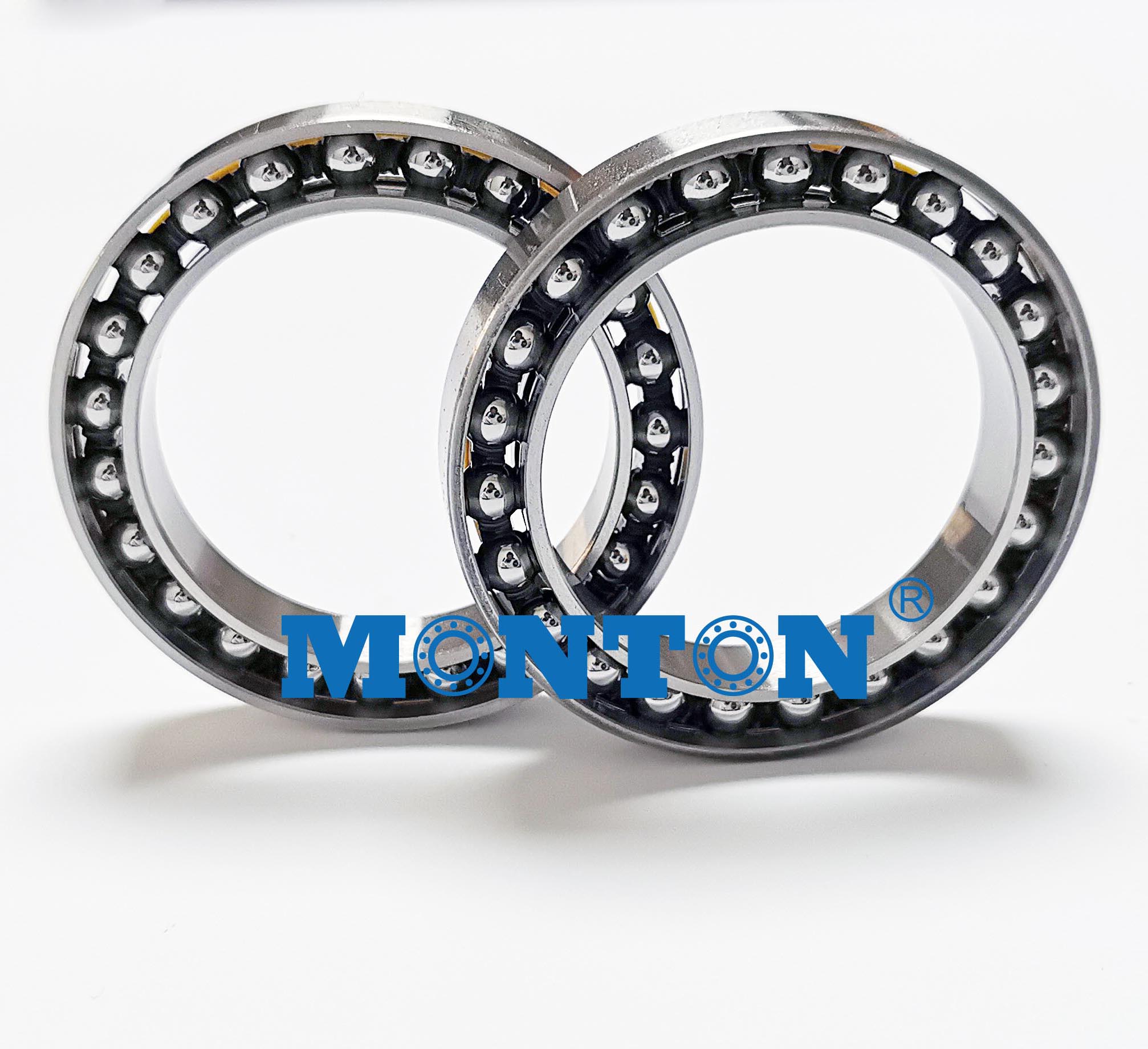

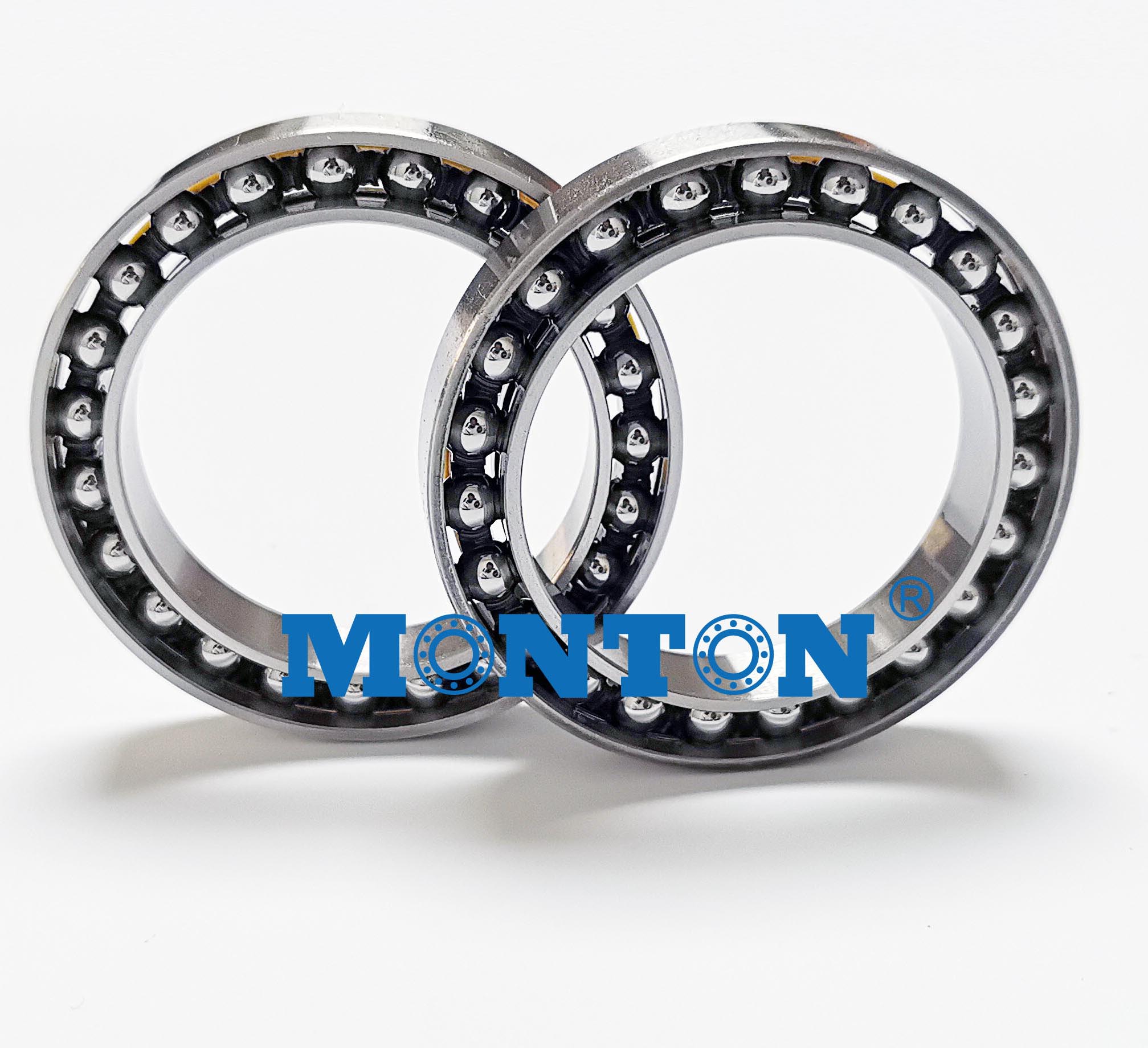

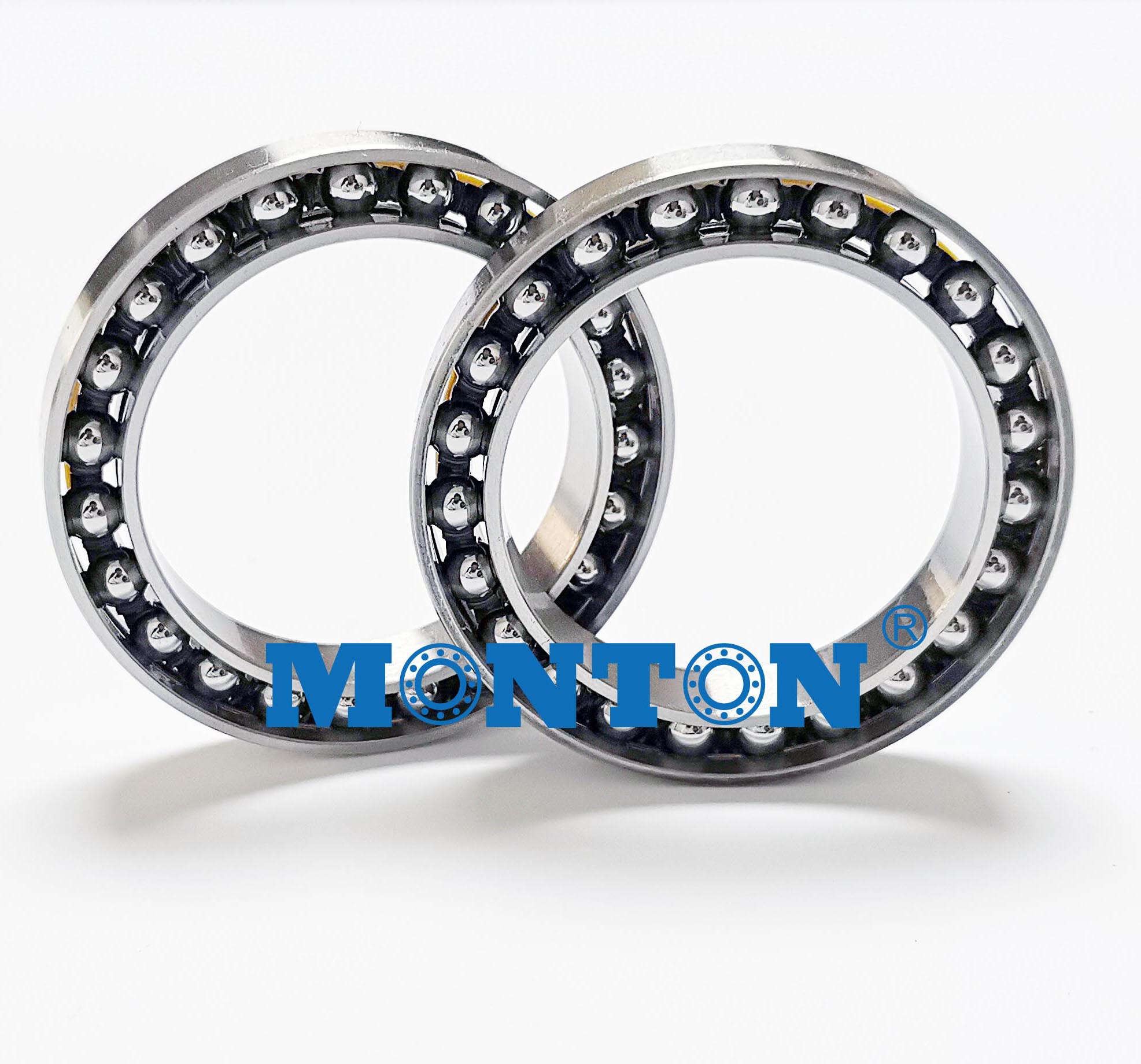

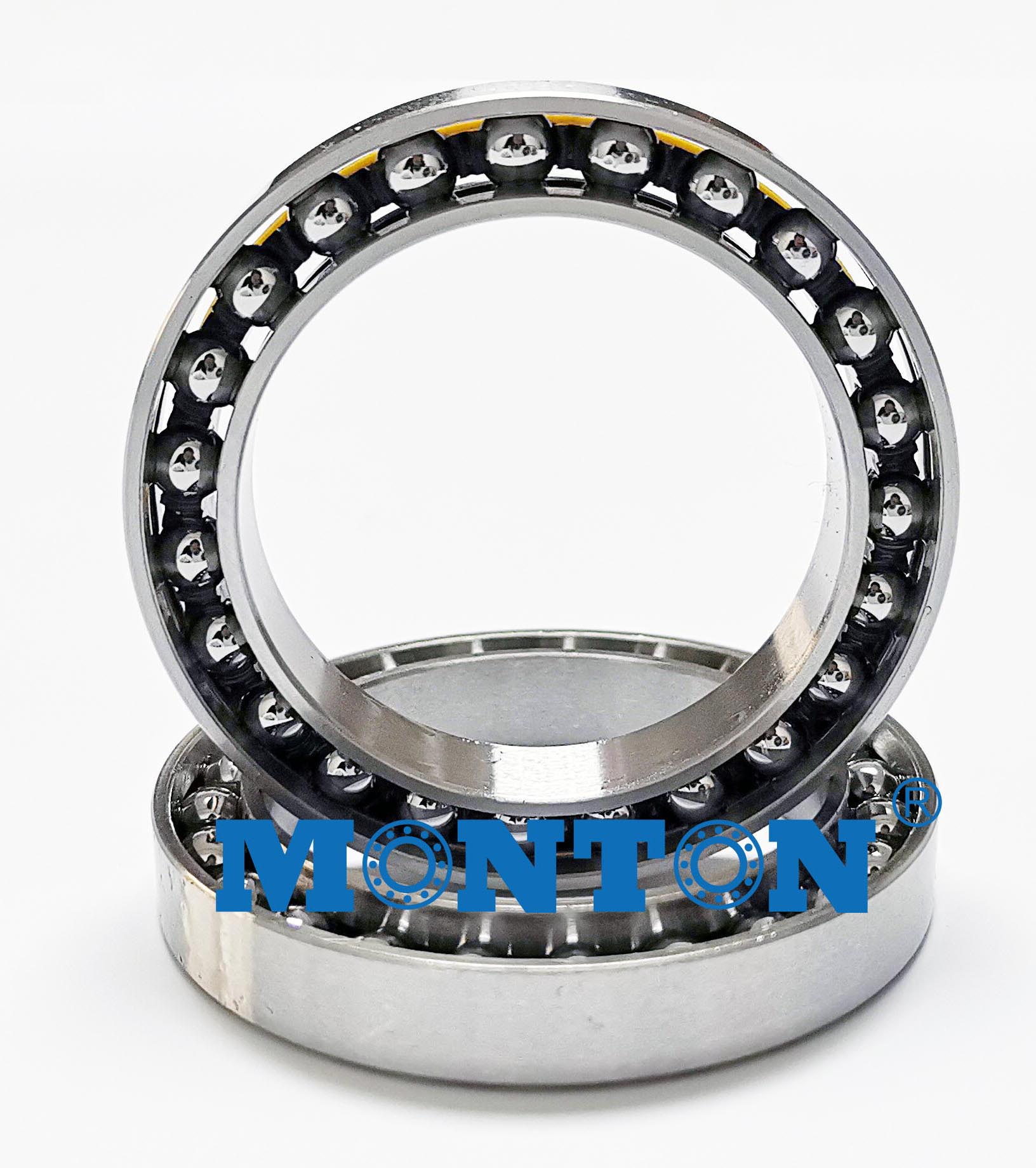

F20 35.56*49.073*7.24mm flexible bearing photos
